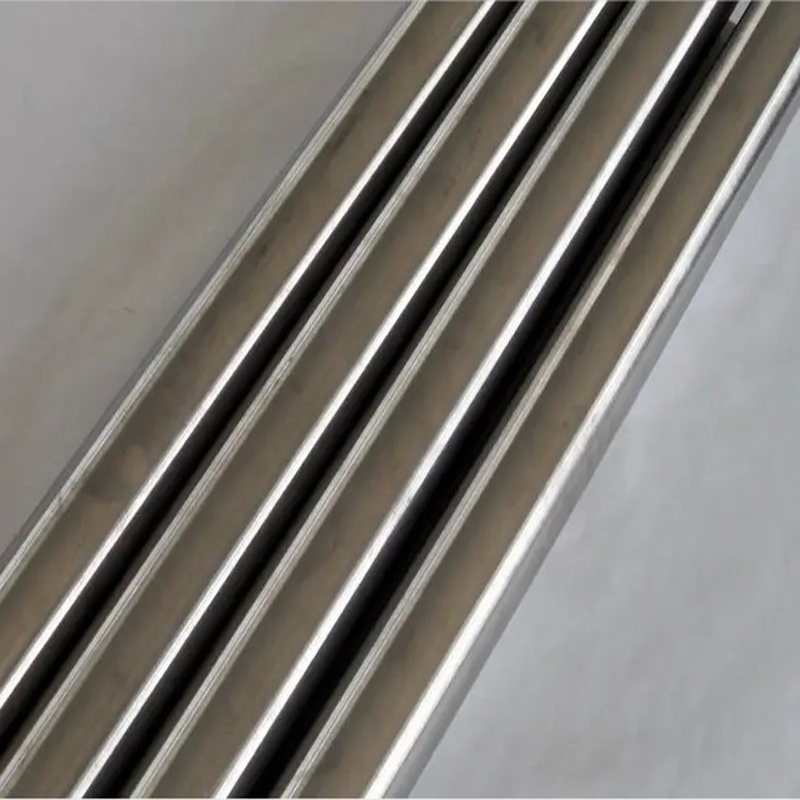

AISI1045 CK45 45# Seamless Precision Steel Pipe Cold Rolled
Seamless Steel Pipe For Motorcycle Front Rod
Outer Diameter: 12-120mm
Wall Thickness: 2-15mm
Main standards: DIN2391, DIN2445, EN10305, DIN1629, DIN1630, ASTM
A179.
Main material: AISI1045 CK45 45#
Main varieties of steel pipes: High-precision precision bright
seamless steel pipes, special steel pipes for hydraulic systems,
special steel pipes for automobile manufacturing
Precision cold rolled pipe has the characteristics of high
precision, high smoothness, good inner wall cleanliness, high
pressure without leakage, cold bending without deformation,
flaring, flattening without cracks, etc. It can be used for various
complex deformation and mechanical processing.
Delivery Conditions
BKS(+SR): After the final cold drawing process there is a stress
relieve heat treatment in a controlled atmosphere.
NBK(+N): After the final cold drawing operation the tubes are
normalized in a controlled atmosphere.
GBK(+A): After the final cold drawing process the tubes are
annealed in a controlled atmosphere.
BK(+C): No heat treatment after the final cold drawig process.
BKW(+LC): After the final heat treatment there is a suitable
drawing pass.
Product name | High precision cold rolled seamless steel pipe |
Material | Carbon & Alloy |
Grade | AISI1045 45# |
Certification | SGS,ISO |
Technique | cold rolled &cold drawn |
Standard | DIN2391,EN10305-1,GB/T3639,ASTM106 |
Application | Widely used in automobiles,motorcyles,gas springs,hydraulic
machinery,construction |
Supply atatus | BK,BKS,BKW,NBK,GBK |
Length | 4-10M,random lengh or fixed lenght |
Surface | oiled,galvanized,phosphate ect |
Packing & Delivery
1. Packing: Seamless Steel Pipe will packing in bundles/in bulk/in
plastic packing.
2. Trade terms:FOB/CFR/CIF
3. Shipping port: Xingang Tianjin
4. Shipment:
1) Small diameter: Weight >Measurement
a. Length: ≤5.8m, loaded in 20FT Container, Max 27-28tons
b. Length: ≤11.8m, loaded in 40 FT Container, Max 27-28tons
c. Length: ≥12m, shipped by bulk vessel. FILO terms
2) Big dimater: Weight a. Size of 20 FT Container(inside
:5898*2352*2350mm)(12024*2352*2395mm)
5.Delivery time: Normal size: 7days send from warehouse directly.
Special size: 25-30days custom made for you.
Production Process
Different processing methods and corresponding auxiliary procedures
are selected according to the processing performance of the metal,
the size of the pipe, the quality requirements, and the investment
and benefits. The basic processes of cold-rolled and cold-drawn
pipes are:
(1) pipe material supply, the pipe materials used are hot-rolled
finished pipes or semi-finished pipes, extruded pipes and welded
pipes;
(2) pipe material preparation, including inspection, bundling, acid
Washing, cleaning, rinsing, neutralizing, drying, lubricating,
etc.;
(3) Cold working (cold rolling or cold drawing);
(4) Finishing of finished products includes heat treatment of
finished products, straightening, sampling, cutting heads and
tails, inspection ( Manual inspection and various flaw detection),
hydraulic test, oiling, packaging, storage, etc. Different products
have different finishing contents.
Our Company
Shandong Huiyuan Metal Material Co., Ltd. is located in Liaocheng
Economic and Technological Development Zone, Shandong
Province,which is known as "Water City North of the Yangtze".
Hui Yuan is a trading company established based on Liaocheng
Development Zone Jinyun Steel Pipe Co., Ltd. The factory has more
than ten years of professional production experience .Now we have
cold rolled seamless steel pipe 12 production lines and hot rolled
seamless steel pipe 1 production line,one more hot rolled seamless
steel pipe production line is under construction.
Our main products are listed as follows: Hot Rolled steel pipe,
Precision Cold Rolled steel pipe, Cold Drawn steel pipe, alloysteel
pipe, bearing steel pipe, spiral pipe, galvanized pipe,Honed
tube,special shape steel pipe.etc.
Our products have been exported to Germany, South Korea, Russia,
Malaysia, Pakistan, Thailand, India, Ukraine and other countriesand
regions. We sincerely welcome friends from all over the world to
contact us and establish mutually beneficial business relations.
