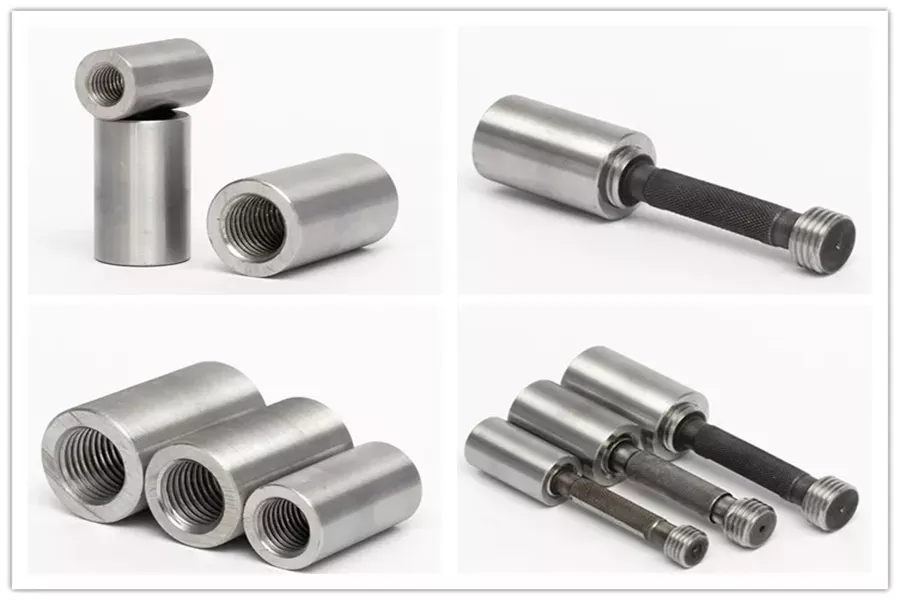

Building Material Rebar Coupler and Rebar Splicing Sleeve
Production process
| Product name: | Rebar Connection Extension Straight Thread Couplers Splice joint Sleeve |
| Project Solution Capability: | Total solution for projects |
| Fit For Rebar Diameter | 12mm-50mm |
| Market: | South&north America/Europe/ Asia/ Australia/Africa and etc. |
| Application: | metal frame, profiled bar, wall mounting, sole plate, bracket, machines, beam, angle iron, track etc |
| Trade Term: | FOB/CIF/CFR/CNF/EXW/DDU/DDP |
| Our advantage: | One-stop shopping; High quality; Competitive price; Timely delivery; Technical support; |
| Customized | OEM/ ODM |
| MOQ | 1000PCS |
| Payment | T/T, etc |
| Test Equipment | Caliper, Go&No-go gauge, Tensile test machine, Hardness tester, Salt spraying tester, H.D.G thickness tester |
Minimum Size Of Steel Parallel Thread Rebar Coupler (unit: mm) |
| Applicable Steel Strength Level | |
| Upset straight thread sleeve | Direct Rolled Straight Thread Sleeves | Direct Rolled Straight Thread Sleeves |
| Size | Outer Diamter(D) | Length(L) | Outer Diamter(D) | Length(L) | Outer Diamter(D) | Length(L) |
| 12 | 19.0 | 24.0 | 18.0 | 28.0 | 18.5 | 28.0 |
| 14 | 22.0 | 28.0 | 21.0 | 32.0 | 21.5 | 32.0 |
| 16 | 25.0 | 32.0 | 24.0 | 36.0 | 24.5 | 36.0 |
| 18 | 28.0 | 36.0 | 27.0 | 41.0 | 27.5 | 41.0 |
| 20 | 31.0 | 40.0 | 30.0 | 45.0 | 30.5 | 45.0 |
| 22 | 34.0 | 44.0 | 32.5 | 49.0 | 33.0 | 49.0 |
| 25 | 38.5 | 50.0 | 37.0 | 56.0 | 37.5 | 56.0 |
| 28 | 43.0 | 56.0 | 41.5 | 62.0 | 42.0 | 62.0 |
| 32 | 48.5 | 64.0 | 47.5 | 70.0 | 48.0 | 70.0 |
| 36 | 54.0 | 72.0 | 53.0 | 78.0 | 53.5 | 78.0 |
| 40 | 60.0 | 80.0 | 59.0 | 86.0 | 59.5 | 86.0 |
| 50 | — | — | 74.0 | 106.0 | 74.0 | 106.0 |
| Applicable Steel Strength Level | |
| Upset straight thread sleeve | Stripping and Rolling Straight Thread Sleeves | Direct Rolled Straight Thread Sleeves |
| Size | Outer Diamter(D) | Length(L) | Outer Diamter(D) | Length(L) | Outer Diamter(D) | Length(L) |
| 12 | 20.0 | 24.0 | 19.0 | 32.0 | 19.5 | 32.0 |
| 14 | 23.5 | 28.0 | 22.5 | 36.0 | 23.0 | 36.0 |
| 16 | 26.5 | 32.0 | 25.5 | 40.0 | 26.0 | 40.0 |
| 18 | 29.5 | 36.0 | 28.5 | 46.0 | 29.0 | 46.0 |
| 20 | 32.5 | 40.0 | 31.5 | 50.0 | 32.0 | 50.0 |
| 22 | 36.0 | 44.0 | 34.5 | 54.0 | 35.0 | 54.0 |
| 25 | 41.0 | 50.0 | 39.5 | 62.0 | 40.0 | 62.0 |
| 28 | 45.5 | 56.0 | 44.0 | 68.0 | 44.5 | 68.0 |
| 32 | 51.5 | 64.0 | 50.5 | 76.0 | 51.0 | 76.0 |
| 36 | 57.5 | 72.0 | 56.5 | 84.0 | 57.0 | 84.0 |
| 40 | 63.5 | 80.0 | 62.5 | 92.0 | 63.0 | 92.0 |
| 50 | — | — | 78.0 | 112.0 | 78.5 | 112.0 |
Note 1: The minimum size in the table means that the sleeve raw material adopts the mechanical properties index of No. 45 steel in
GB/T699 (the measured yield strength and ultimate strength should not be less than 355Mpa and 600Mpa respectively), and the sleeve
manufacturer has a good quality control level. The minimum size that can be selected.
Note 2: For the sleeve without cutting the outer surface, when the outer diameter of the sleeve is less than or equal to 50mm, the
increase should not be less than 0.4mm on the basis of the minimum outer diameter listed in the table; when the outer diameter of
the sleeve is greater than 50mm , should be added to the minimum outer diameter size listed in the table should not be less than
0.8mm.
Note 3: The minimum size of the measured sleeve shall be measured in at least two directions, and the smallest value shall be used
for judgment.
Main Features:
1.Use solid 45# carbon steel as raw material and Round Bar Cutting
2. High Tensile & yield strength≥630MPa , reach JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.
3. Easy operation & environmentally friendly.
4. Could be used in the every orientation connection of reinforcing bars with same or different Diameter.
5. Good low temperature resistance, and could pass the -40 degree low temperatur
Application Area
