ASTM A335 P9 alloy steel pipe/ASTM A355 P9 alloy seamless steel pipe

Product Description

Seamless Mechanical Tubing
The seamless tube is manufactured using a process called “extrusion”. During this process a solid steel bar is pierced though the centre using a die, turning the solid round into a round tube.

Basically there are two types of seamless tube:
Cold Drawn Seamless (CDS) and Hot Finished Seamless (HFS). Both CDS and HFS steel tubes provide strength and durability, but the process used to create each type of tubing provides slightly different advantages. Deciding whether Cold Drawn Seamless or Hot Finish Seamless is best will depend on how you plan to use the tubing for your application.


Cold Drawn Seamless mechanical tubing is created by hot rolling SAE 1018 carbon steel, then drawing it at room temperature. During the drawing process, the pointed end of the tube is passed through a die. Force is used to stretch the steel into the desired thickness and shape and smooth the surface. This type of steel tubing meets ASTM A519 standards. It provides high yield strength, close tolerances and a smooth finish that is preferable for many mechanical applications.

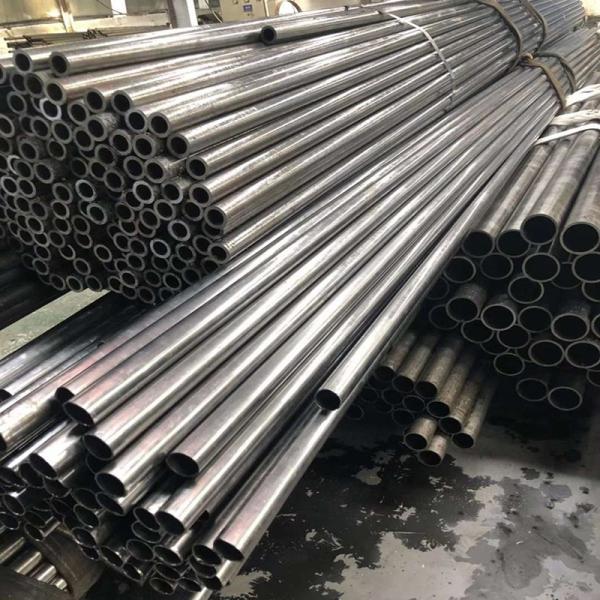

seamless steel pipe


Hot Finished Seamless mechanical tubing is produced using SEA 1026 carbon steel and is manufactured using the same extrusion process, only without the final step of drawing the tube at room temperature. The HFS process produces a steel tube that is easily machinable and is ideal for applications where a close dimensional tolerance or smooth surface finish is not required. HFS steel tubing meets ASTM A519 standards and is commonly used for applications requiring a thicker, heavier wall.

Benefits of Cold Drawn Seamless (CDS):
Good surface finish – Superior machinability – Increased dimensional tolerances – High strength to weight ratio

Benefits of Hot Finished Seamless (HFS):
Cost effective material – Good Machinability – Wide range of sizes

Mechanical Seamless Steel Tubing Manufactured to Industry Standards:
Permanent Steel Manufacturing Co.,Ltd offers Cold Drawn Seamless and Hot Finished Seamless mechanical steel tubing manufactured to ASTM A519, in a variety of configurations.


Carbon Specifications and Grades:
ASTM A519 1010 - 1045
ASTM A519 Hot Finish and Cold Drawn
ASTM/ASME A/SA105
ASTM/ASME A/SA106 B/C
ASTM/ASME A/SA 333 1/6
NACE MR-0175


Heat Treatments:
Normalized
Quenched and Tempered
Normalized, Quenched and Tempered
Stress Relieved Annealed
Full Annealed


Sizes:
Hot finish mechanical 2" - 26" OD and up to 4" walls
Cold drawn mechanical 0.875" - 12" OD and 0.083" - 1.375" walls
ASME Carbon pipe OD's, non-schedule walls 2.50" - 26" nominal and up to 4" walls


What are the Different Applications for Seamless Steel Tubing?

Cold Drawn Seamless steel tubing:
Hydraulic components

Automotive parts
Structural components
Rollers
Heavy equipment
Agricultural components



Hot Finish Seamless steel tubing:
Hydraulic components
Oil and gas components
Rollers
Drilling equipment
Agricultural components
Sleeves
Bushings
Spacers
Axles

Detailed Photo:

packing details:

Application:

FAQ:

Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Silaishi Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
